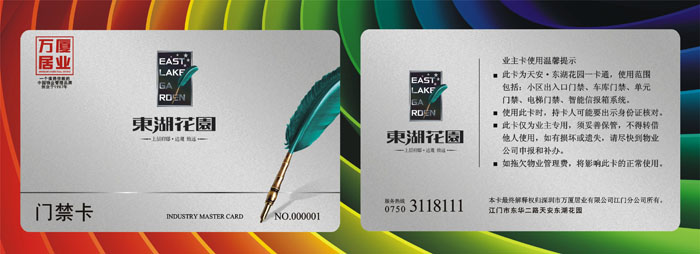

Used for community access control, company access, airport access, and cards used by parking lots are collectively referred to as access control cards. The access card is roughly divided into three. The first is the ID access control card, the second is the IC access card, and the third is a super high frequency access card.

The IC access card uses a 13.56kHz high-frequency chip, common NXP S50 chip, Domestic Fudan F08 chip, is generally used in high-end cells, parking.

Mifares 50 features:

● Product Name: Mifare 1K (S50) card

● Chip type: Philips Mifare 1 IC S50

● Storage capacity: 8kbit, 16 partitions, two sets of passwords per partition

● Working frequency: 13.56 MHz

● Communication rate: 106kboud

● Read and write distance: 2.5 ~ 10cm

● Read / write time: 1 ~ 2MS

● Operating temperature: -20 ° C ~ 55 ° C

● Write life:> 100,000 times

● Data save:> 10 years

● Dimensions: ISO standard card 85.6x54x0.82

● Package material: PVC, PET, PETG, 0.13mm copper wire

● Package process: ultrasonic automatic planting / automatic welding

● Execute standard: ISO14443A

● Typical application: Corporate / campus card, bus stored value card, highway charge, parking lot, community management, etc.

Ultra-high frequency door ban uses ultra-high frequency chips with 860-960 MHz. Ultra-high frequency 6C electronic label chip is typical for UcodeEPC G2 (SL3 ICS10, domestic long name Gen2) produced by Netherlands NXP (NXP) and the US Texas Instrument Corporation (TI Company) is typical. represent.

Gen2 series:

Technical parameters of electronic tag / card

★ Working frequency: 860-960MHz

★ Storage capacity: generally 96-bit EPC (G2) or 240-bit EPC (G2XL / G2XM)

★ Agreement Standard: ISO 18000-6 Type C

★ Writing life: more than 100,000 times

★ Data save time: 10 years

All of the company’s access cards are encapsulated with high-density PVC materials, fine workmanship, exquisite and stylish, strong and wear
